01 / 04
Reference Turntable · Hand-Assembled in Bavaria

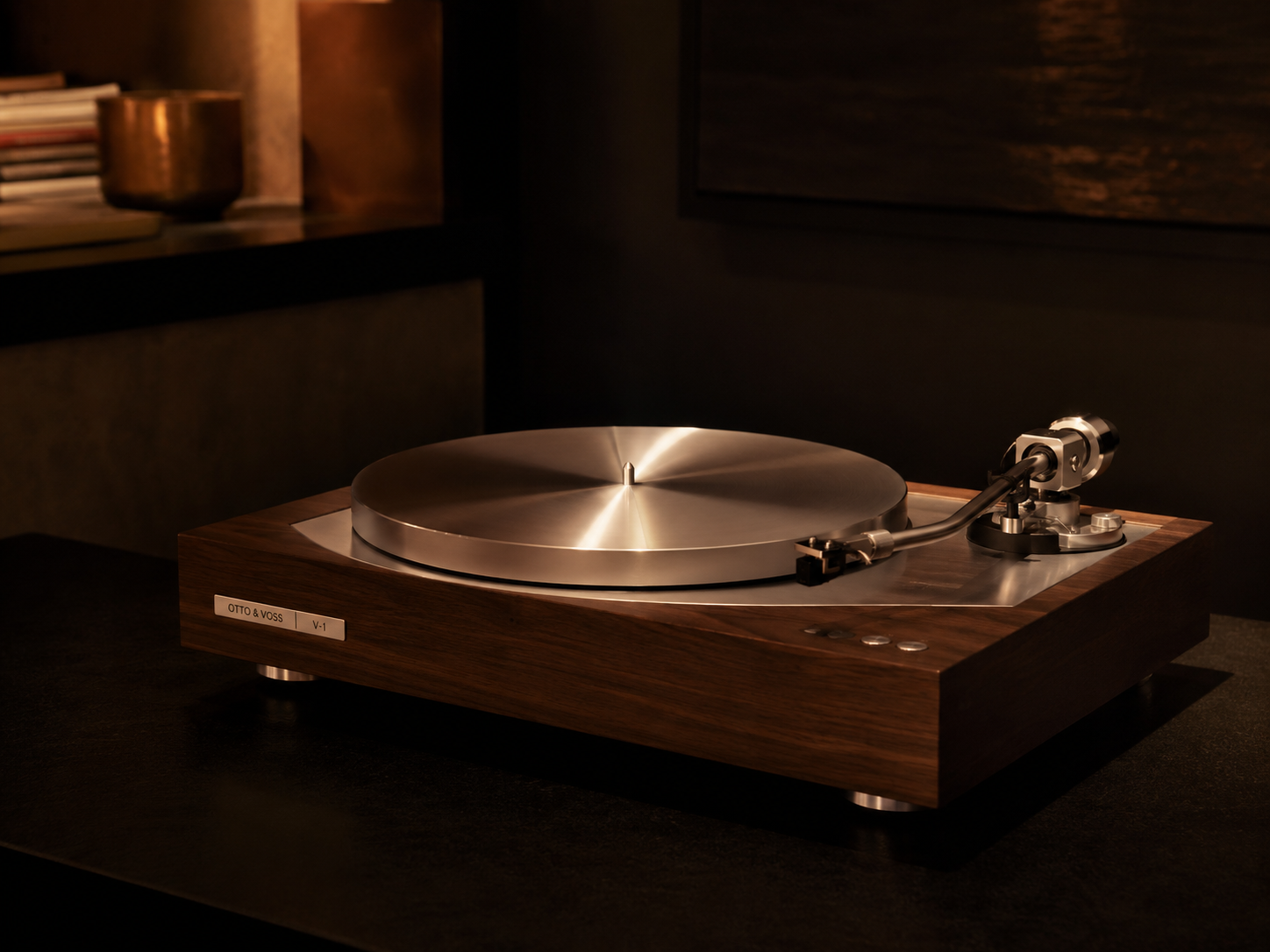

Otto & Voss V‑1
A reference platform engineered for what the recording actually contains.
USD · ships from Vancouver
Free white-glove delivery · 30-day home audition · 2-year warranty
Drive
Belt drive
Motor
AC synchronous
Speed
33⅓ / 45 RPM
Platter
3.2 kg aluminium
Weight
11.4 kg
Dimensions
450 × 365 × 142 mm
Designed to disappear
into the music
The V-1's plinth is machined from a single pour of composite phenolic resin — a material selected for its resonance characteristics, not its cost. Most turntable plinths ring at frequencies that muddy the midrange. This one does not. The internal mass is deliberately asymmetric, calculated to shift the first bending mode above 200 Hz, out of the bass registers that matter most to the recording.
The platter bearing runs on an inverted hardened steel point, seated in a PTFE-lined sleeve. It is pre-loaded at the factory to eliminate vertical play without creating friction. In a decade of production, no customer has returned one for bearing service.
The tonearm is static-balanced, nine inches, with an effective mass of 11.2 grams — chosen to match the compliance range of the Ortofon 2M series without restricting future cartridge changes. Everything on the V-1 was chosen because it was right.
Each V-1 is assembled by one of three engineers. Build time: six weeks from order.
Otto & Voss V‑1
Drive
| Drive system | Belt drive, low-noise elastomer belt |
|---|---|
| Motor | AC synchronous, 24-pole |
| Speed | 33⅓ / 45 RPM |
| Speed accuracy | ±0.3% |
| Wow & flutter | < 0.08% (DIN 45507) |
| Signal-to-noise | > 78 dB (DIN 65 B, IEC 268-15) |
Platter
| Material | Machined aluminium alloy, hard-anodised |
|---|---|
| Weight | 3.2 kg |
| Bearing type | Inverted, hardened steel on PTFE sleeve |
| Bearing pre-load | Factory set, non-adjustable |
Tonearm
| Type | Static-balanced, 9-inch aluminium tube |
|---|---|
| Effective length | 230 mm |
| Overhang | 18 mm |
| Effective mass | 11.2 g |
| Anti-skate | Mechanical, string-and-weight |
| VTA adjustment | On-the-fly, graduated collar |
Cartridge
| Included (stock) | Ortofon 2M Blue |
|---|---|
| Included (upgrade) | Ortofon 2M Black |
| Output (2M Blue) | 5.5 mV @ 1 kHz, 5 cm/s |
| Output (2M Black) | 5.0 mV @ 1 kHz, 5 cm/s |
Electrical

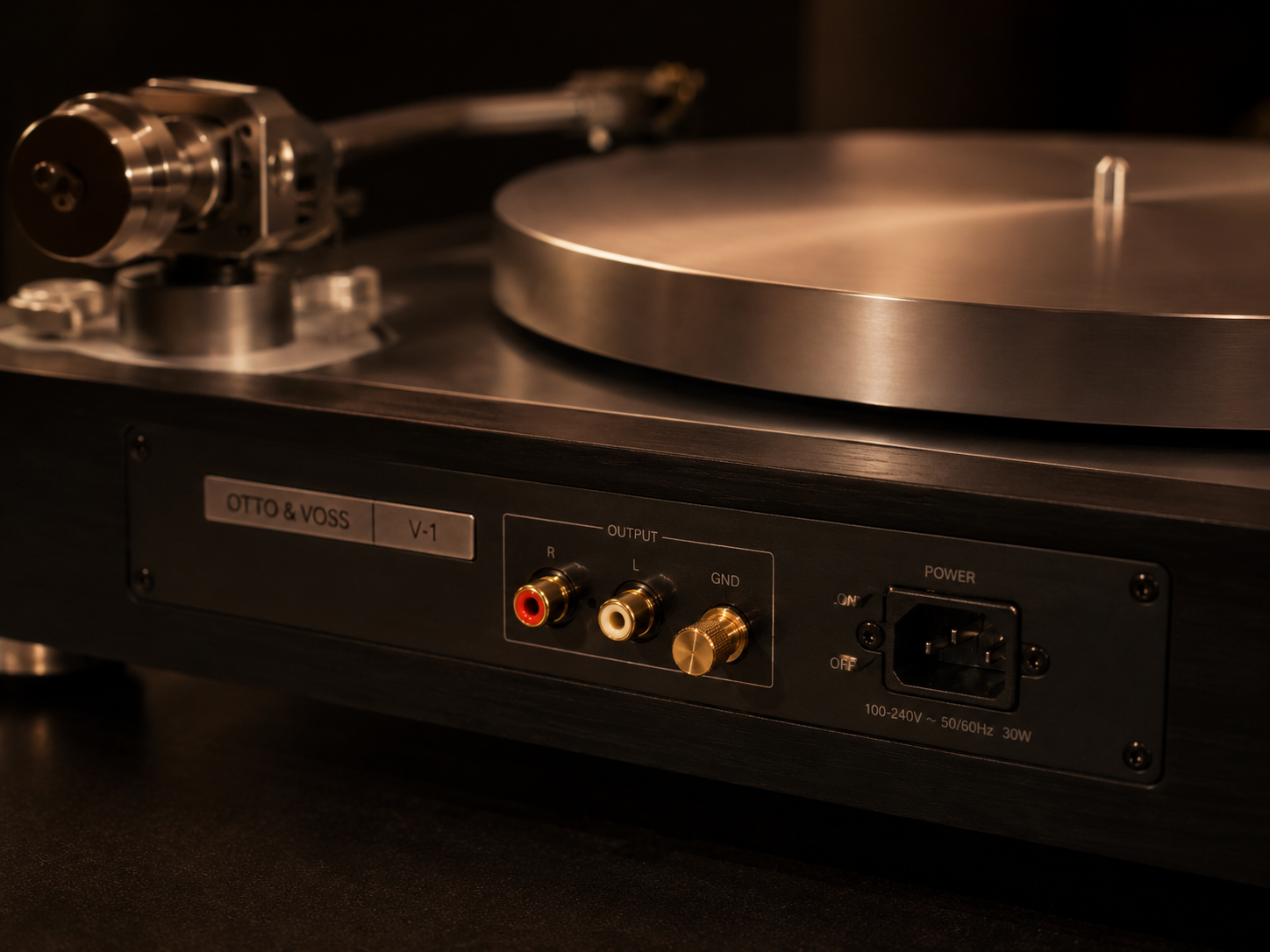

| Outputs | 1× RCA pair (phono), 1× ground post (M4) |
|---|---|
| Power input | 100–240 V AC, 50/60 Hz (external PSU) |
| Consumption | 8 W |
Physical
| Weight (assembled) | 11.4 kg |
|---|---|
| Dimensions (W×D×H) | 450 × 365 × 142 mm |
| Dust cover (open) | + 255 mm height |
| Finish options | Walnut, Black Ash, Natural Oak |
The V-1 ships with
- 01V-1 plinth and chassis, factory-assembled
- 02Tonearm (9-inch, factory-fitted and aligned)
- 03Selected cartridge (factory-aligned to tonearm)
- 04Felt platter mat
- 0545 RPM spindle adapter
- 06External power supply unit
- 07Phono cable, 1.5 m (RCA to RCA)
- 08Cartridge alignment protractor
- 09Hinged dust cover
- 10Owner's Manual (EN / DE)
- 11Certificate of build — signed, numbered by assembling engineer
